USAFEQLO D8 16CH H.265 Hybrid Mini DVR Recorder
1.it has 28 different language.
2.it can support H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264.

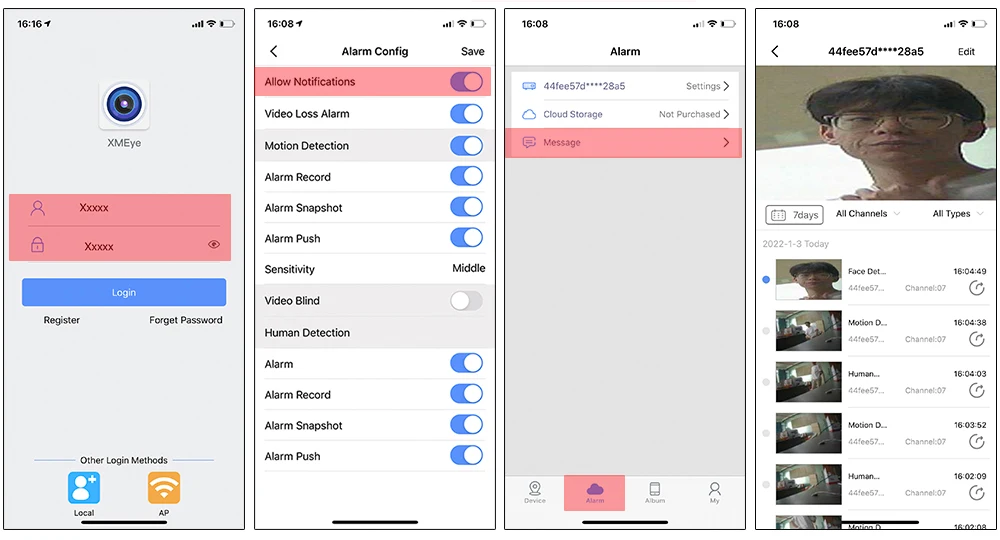

3.it Support Email and APP push notification methods.
it is made in USAFEQLO Security Technology Co.,Ltd

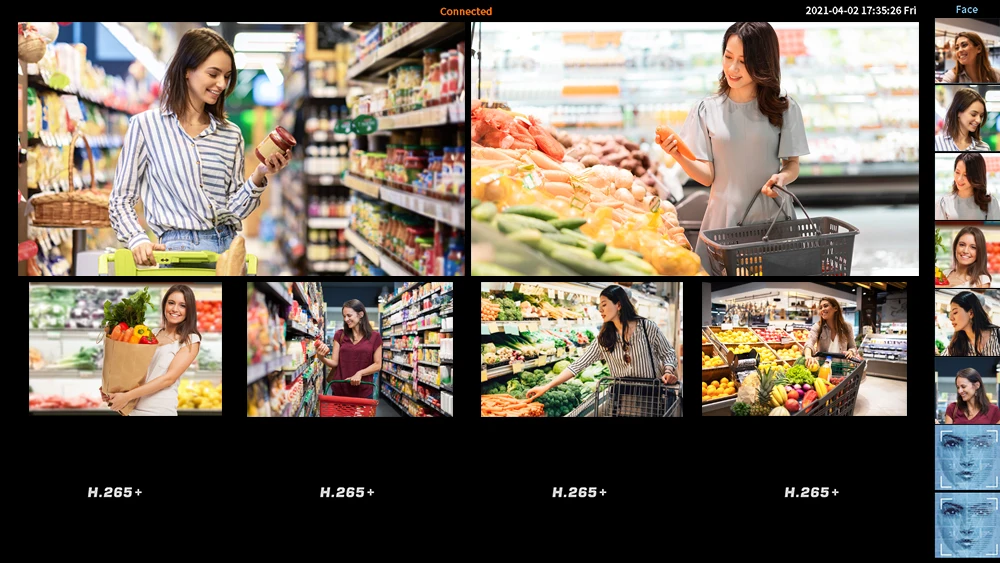

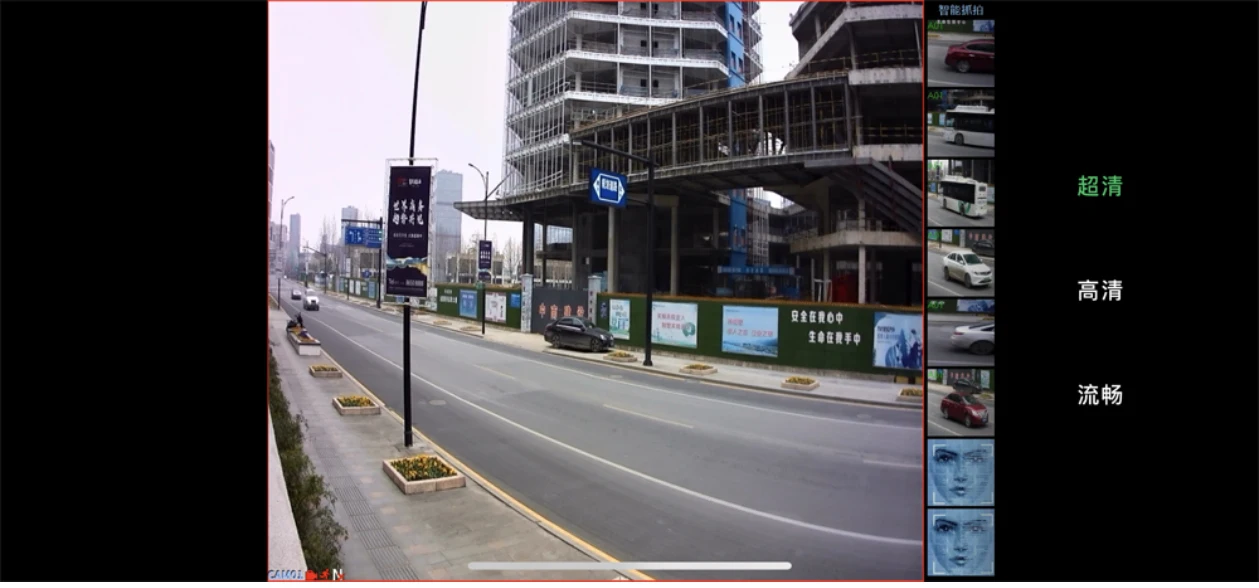

Record every face that appears on the lens, without missing any details.

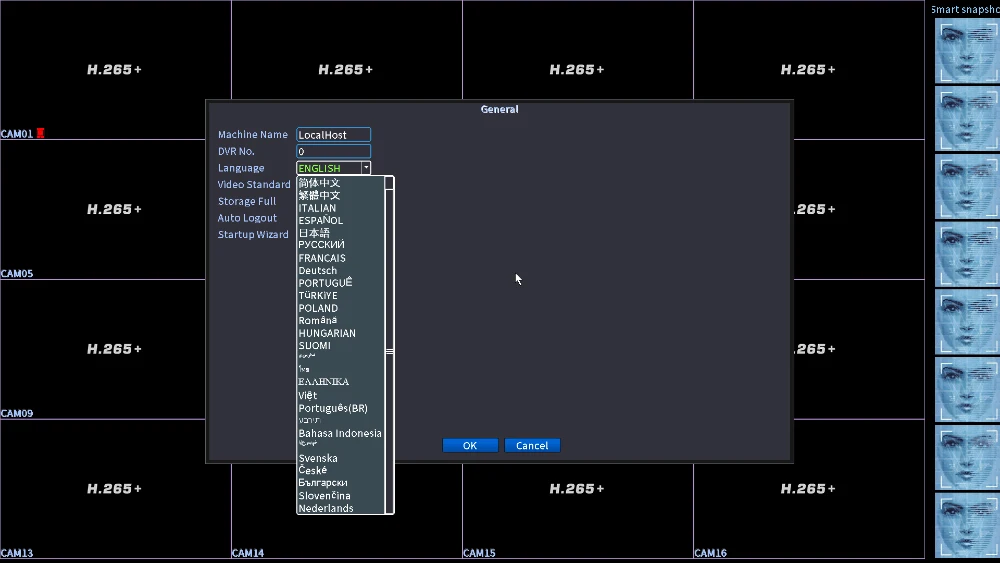

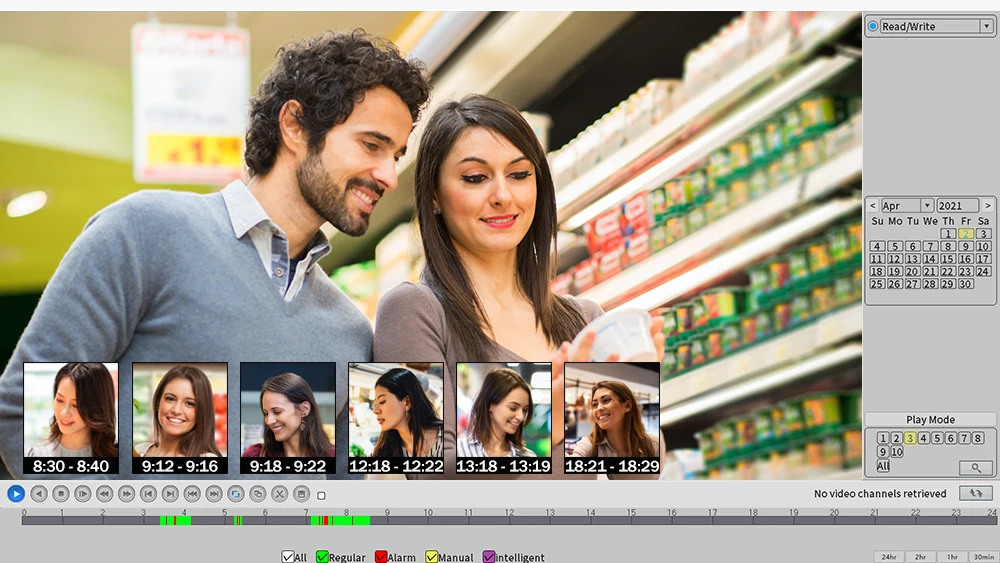

You need use the Face Detction Function IP Camera Support the Face Playback Langauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages Motion Detection & Email Alert/Record

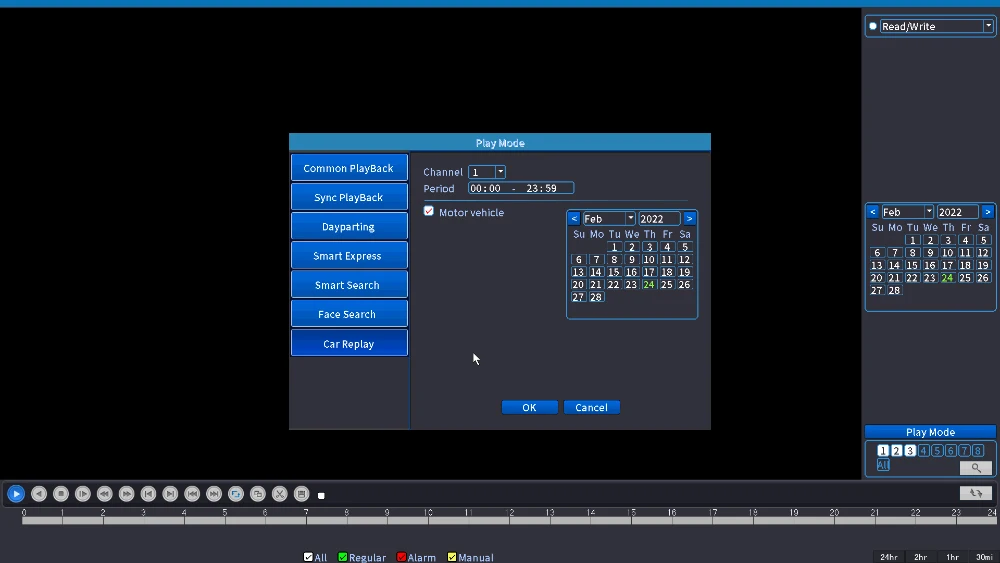

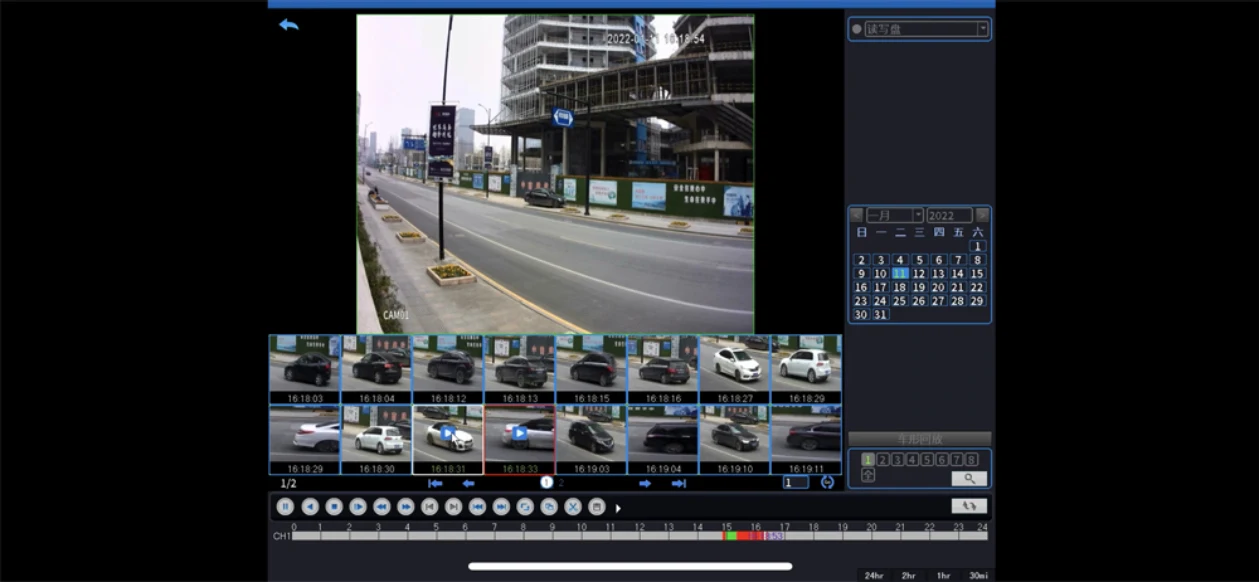

when motion is detected, the DVR can send email(Send message) or start record to the hard disk without missing any important events. Car Detection/ 8CH,16CH Support,4CH Not support
Support AHD 8MP/4K Cameras16CH Digital Menu
8CH Digital Menu
4CH Digital Menu
Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.Easy remote access Anytime anywhere

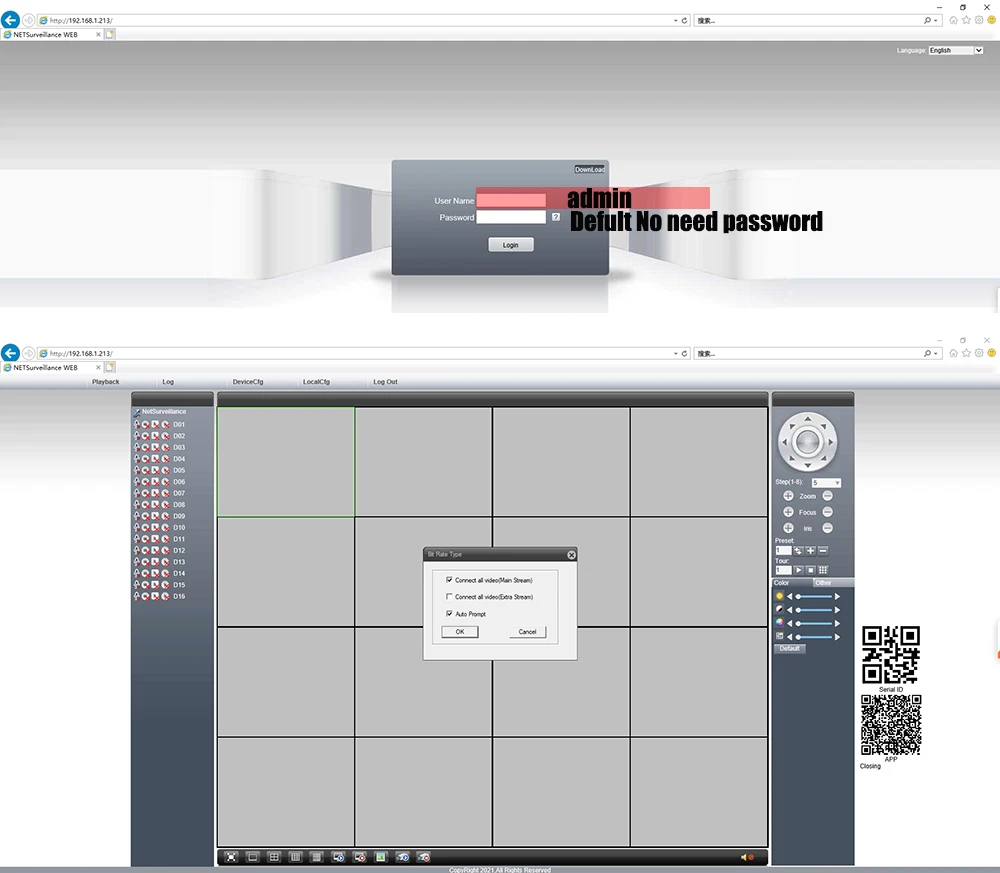

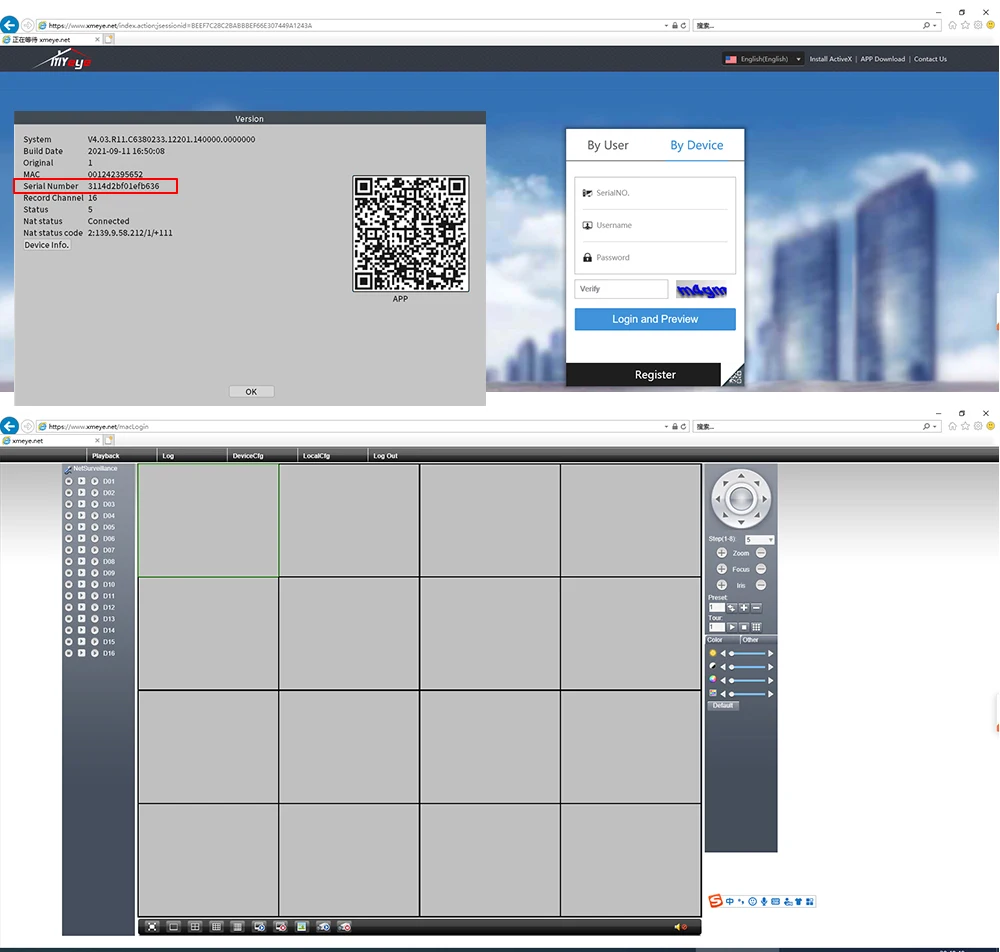

P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.3.5CH HDD SupportWe recommend the Seagate,WD purple,TOSHIBA.(Only support the Security HDD)Product Detail
For Home Kit Support
Support 7601 Model Wifi Adapter
This link is not include wifi adapter, if you need, you can press the photo below to buy.
(Below main PCB is for this NVR)
Packing List:
1*DVR
1*Mouse
1*12V2A Adapter
1*Manual
System |
Model |
4CH |
8CH |
16CH |
|
Chip |
NT98323 |
NT98336 |
NT98336 |
||
Preview |
1/4/8/9 |
1/4/8/9 |
1/4/8/9/16 |
||
Video |
Video input |
4CH BNC |
8CH BNC |
16CH BNC |
|
Codec |
H.265+/H.264 |
H.265/H.264 |
H.265+/H.264 |
||
Display
Quality |
Max 4K |
Max 4K |
Max 4K |
||
PreView Quality |
4*4K/8MP@15fps(6 in 1) 4*5MP@20fps(6 in 1) 4*4MP@21fps(6 in 1) 4*3MP(6 in 1) 4*1080P(XVI) Default:4K/8MP |
8*4K/8MP@15fps(6 in 1) 8*5M@20fps(6 in 1) 8*4M(6 in 1) 8*3M(6 in 1) 8*1080P(XVI) Default:8MP/4K |
16*4K/[email protected](6 in 1) 16*[email protected](6 in 1) 16*4M@15fps(6 in 1) 16*3M@18fps(6 in 1) 16*1080P(6 in 1) |
||
Encode Quality |
4*4K/8MP@8fps(6 in 1) 4*5M@16fps(6 in 1) 4*4M@21fps(6 in 1) 4*3M(6 in 1) 4*1080P(6 in 1) Default:8MP/4K |
8*4K/8MP@8fps(6 in 1) 8*5M@14fps(6 in 1) 8*4M@18fps(6 in 1) 8*3M@21fps(6 in 1) 8*1080P(6 in 1) Default:8M/4K |
16*4K/8MP@4fps(6 in 1) 16*5M@6fps(6 in 1) 16*4M@9fps(6 in 1) 16*3M@10fps(6 in 1) 16*1080P@16fps(6 in 1) |
||
Decode
Quality |
4*4K/8MP@9fps(6 in 1)
4*5M@16fps(6 in 1) 4*4M@21fps(6 in 1) 8*3MPfps(6 in 1) 8*1080P Default:8MP/4K |
8*4K/8MP@8fps(6 in 1) 8*5M@14fps(6 in 1) 8*4M@18fps(6 in 1) 8*3M@21fps(6 in 1) 8*1080P Default:8M/4K |
16*4K/8MP@4fps(6 in 1) 16*5M@6fps(6 in 1) 16*4M@9fps(6 in 1) 16*3M@10fps(6 in 1) 16*1080P@16fps(6 in 1) |
||
Multi-mode
input |
Analog: 4*4K/8MP
hybrid: 4*4K/8MP(analog)+4*4K/8MP(network) Network: 16*1080P; 8*5MP |
Analog: 8*4K/8MP hybrid: 8*4K/8MP(analog)+8*4K/8MP(network) Network: 16*4K/8MP; 16*5MP |
Analog: 16*4K/8MP, 16CH*5MP hybrid: 16*4K/8MP(analog)+16*4K/8MP(network) Network: 16*4K/8MP; 16*5MP |
||
Motion
detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set
(Limited local channel) |
||||
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
||||
Audio |
Audio Conpression |
711A |
|||
Intercom |
Support |
||||
Record &
Playback |
Search mode |
Search by time, calendar, event, channel |
|||
Local Playback |
4CH |
8CH |
4CH |
||
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
||||
Video output |
1ch VGA,1ch HDMI-Compatible HD output |
||||
Audio I/O |
1/1 |
4/1 |
2/1 |
||
External interface |
3G/WIFI |
Support 7601 Adapter (Not include) |
|||
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
||||
USB interface |
2*USB2.0 ports(Not support the keyboard) |
||||
HDD |
1* SATA(Up to 14TB for each disk)(HDD is not include,you can choose in the link) |
||||
ESATA |
Not Support |
||||
Power supply |
12V/2A |
||||
Other |
Power Consumption |
<10W(Without HDD) |
|||
Work environment |
Temperature:-20��-65�� , Humidity:10%��90%RH , Atm:86kpa��106kp |
||||
Dimension |
L250*W220*H45mm |
||||
Weight |
A total of about 1500g |
||||
Model |
62N04R-GL |
62N08T-GL |
62N16T-GS |

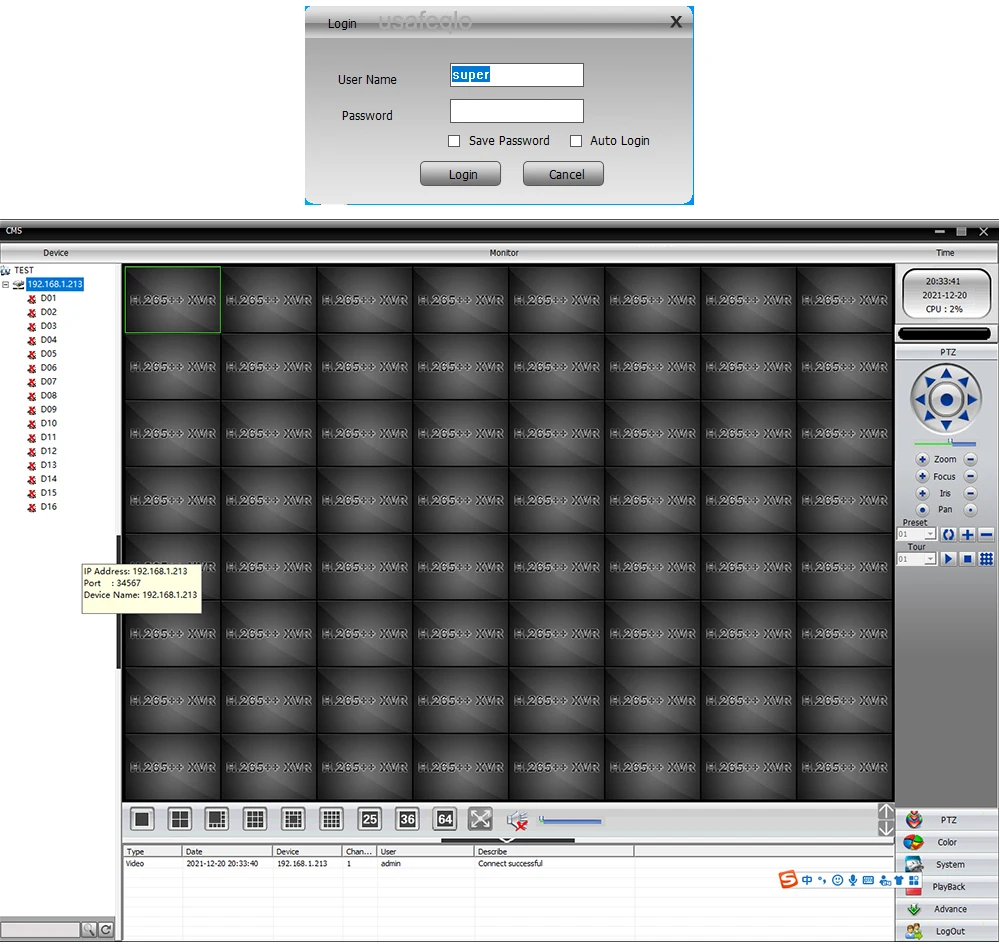

Win10 Style:
