USAFEQLO H8 16CH POE NVR Recorder H.265 Surveillance Security Video Recorder
1. Built-in advanced microphone & speaker and with anti noise technology for a clear voice communicating between the APP and camera
2.it can support Supports 2.4G HZ Wifi (Don't support 5G HZ WiFi).
3.it Support Email and APP push notification methods.
it is made in USAFEQLO Security Technology Co.,Ltd

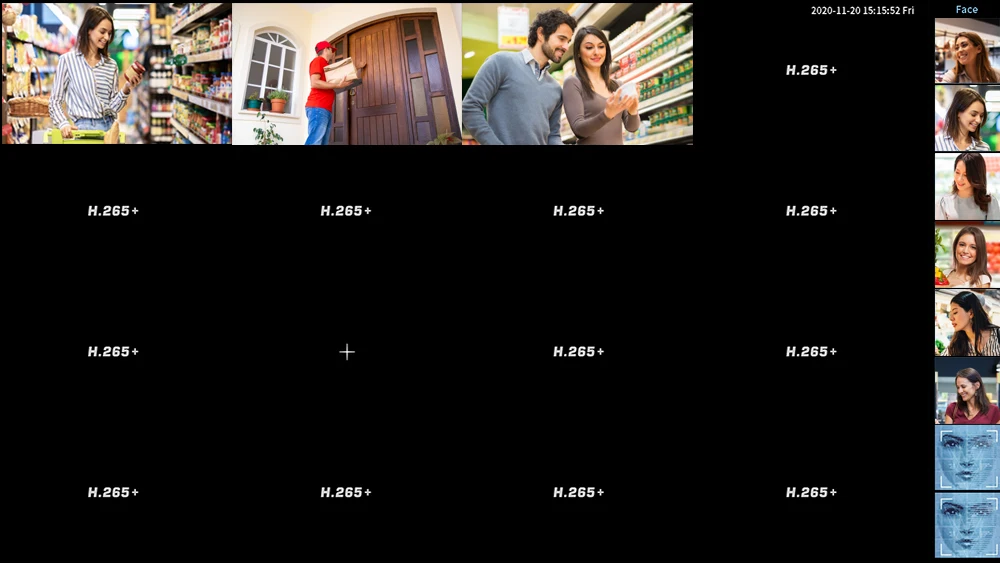

Face Record/Face Detection/Face PlaybackRecord every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera
Support the Face Playback Langauages:English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages
Motion Detection & Email Alert/Recordwhen motion is detected, the DVR can send email(Send message) or start record to the hard disk without missing any important events.

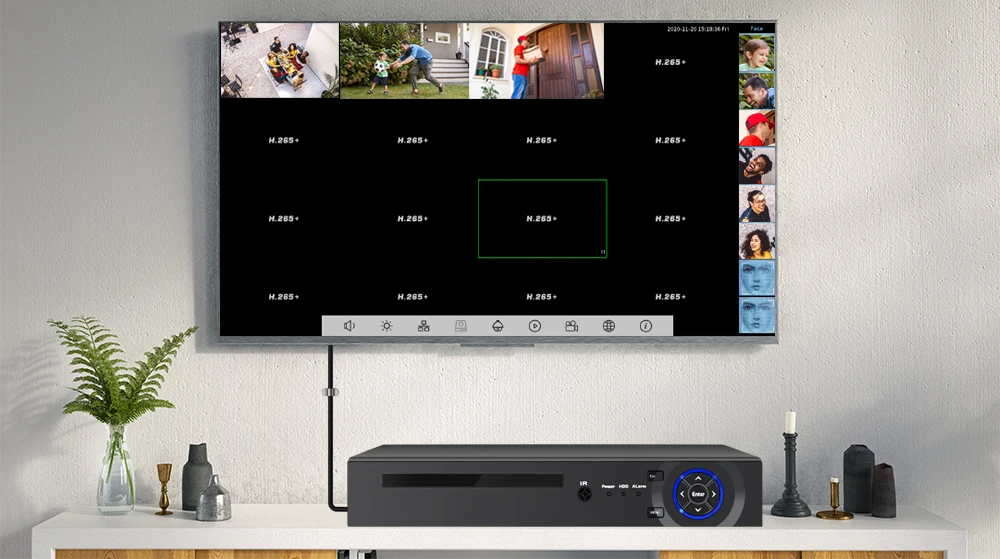

Max Support the 4K Display
Support IP 8MP/4K Cameras
16CH Digital Menu
Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.
Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.
3.5CH HDD SupportWe recommend the Seagate,WD purple,TOSHIBA.(Only support the Security HDD)
Product Detail
For Home Kit Support
Support 7601 Model Wifi Adapter
This link is not include wifi adapter, if you need, you can press the photo below to buy.
(Below main PCB is for this NVR)
Packing List:
1*DVR
1*Mouse
1*12V2A Adapter
1*Manual
1*Remote Control(No battery)
Specification |
H.265 16CH POE NVR |
|
System |
Main processor |
NOVA 98323 Technical grade embedded microprocessor |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Interface |
Operation interface |
16bit real color GUI interface support mouse operation |
Preview |
1/2/4/6/8/9/10/16 |
|
Video |
Video standard |
PAL; NTSC |
Image encode |
H.265+ |
|
Monitor quality |
VGA,HDMI-Compatible:High definition |
|
Video input |
16*4K/ 8MP IP Camera |
|
Motion detection |
Support (Depend on camera) |
|
Audio |
Audio compression |
G.711A |
Intercom |
Yes |
|
Record&Playback |
Record mode |
manual>alarm>motion detection>timing |
Local playback |
4K/8MP |
|
Video search |
Time, date, event, channel search |
|
Storage&Back up |
Video storage |
Local HDD ,Network |
Back up mode |
Network backup, USB portable HDD,USB imprint,SATA imprint |
|
Interface |
Video input |
16CH IP |
Video output |
1ch VGA,1ch HDMI-Compatible HD output |
|
Loop output |
N/A |
|
Audio Out |
Yes |
|
Alarm I/O |
NO |
|
Network port |
1*RJ45 100M self-adaptive Ethernet port; 16*POE ports support poe power supply |
|
PC/Laptop Remote |
Support web, CMS, center platform management software XMEYE |
|
USB port |
2*USB2.0 port, one is for mouse,the other one is for usb disk |
|
HDD port |
2 SATA ports,max support 14TB (HDD is option) |
|
Other |
Power |
48V 5A |
Temperature |
-25��C ~ 50��C (-13 �� ~ 122 ��) |
|
Humidity |
10%-90% |
|
Dimension |
L460mm* W310mm* H95mm |
|
Weight |
Around 2.5KG |
|
