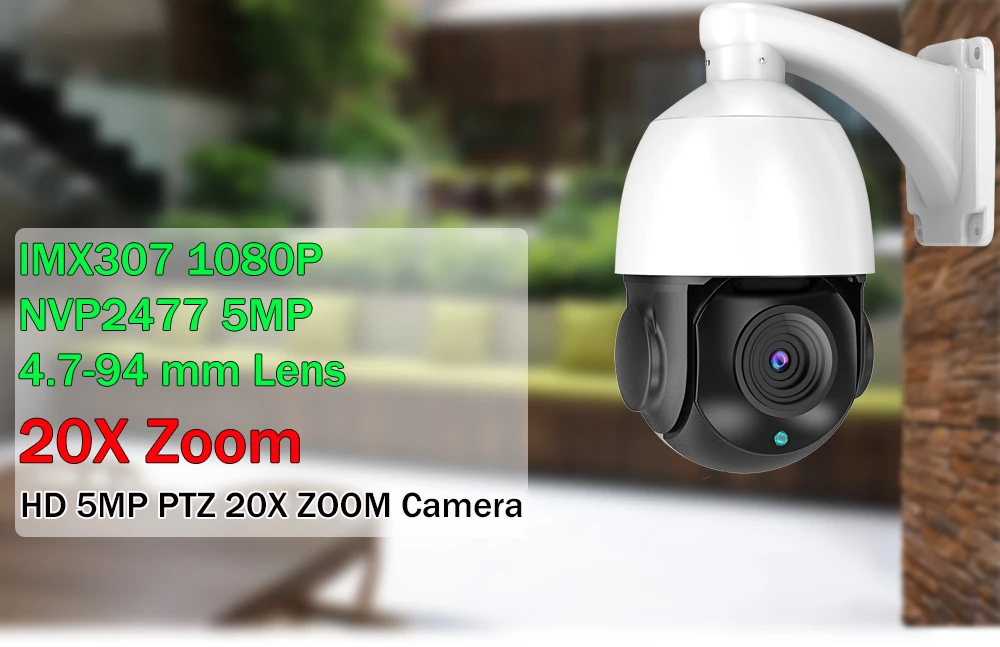

USAFEQLO K12 4IN1 AHD/TVI/CVI/CVBS HD 2MP 1080P 5MP 20X Optical Zoom NTSC PTZ CCTV Analog Speed Dome Camera
1. Built-in advanced microphone & speaker and with anti noise technology for a clear voice communicating between the APP and camera
2.it can support Supports 2.4G HZ Wifi (Don't support 5G HZ WiFi).
3.it Support Email and APP push notification methods.
it is made in USAFEQLO Security Technology Co.,Ltd

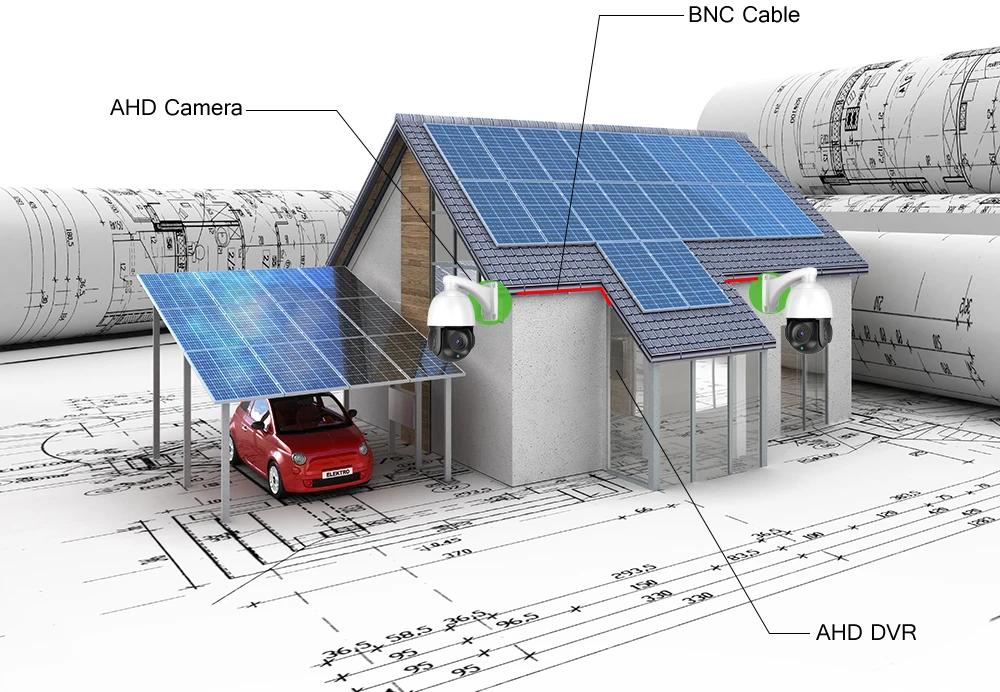

Support the AHD Coaxial 5MP DVR
You camera press the dvr photo to order
1080P AHD is work for AHD 1080P DVR
5MP AHD is work for AHD 5MP DVR
Multiple alarm detection and notification methods
Support Face Detection,Motion Detection,Camera lens was covered Alarm detection method.
Support Buzzer,Email and APP push notification methods.
(This function need contact the dvr)
20X Optical Zoom
4.7-94 mm Lens support 20x magnification,more clear image.

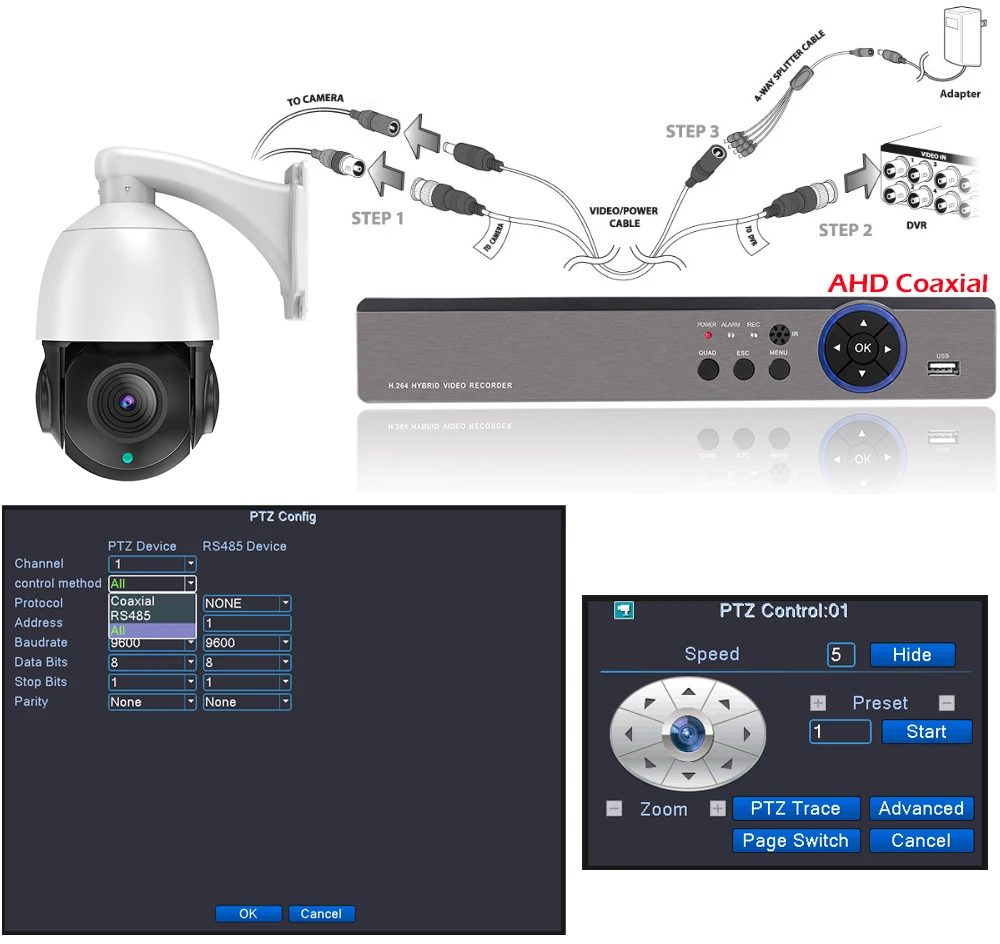

PTZ Control & Preset Points
360degree PTZ pan/tilt rotation vertical 90degree can control the rotation angle through Xmeye App(Must be AHD Coaxial DVR).
Waterproof IP66
Protection against harsh weather and the environment,The camera is weather and durable.
HD 5MP Resulution
Smart IR LED
Built-in 6Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.

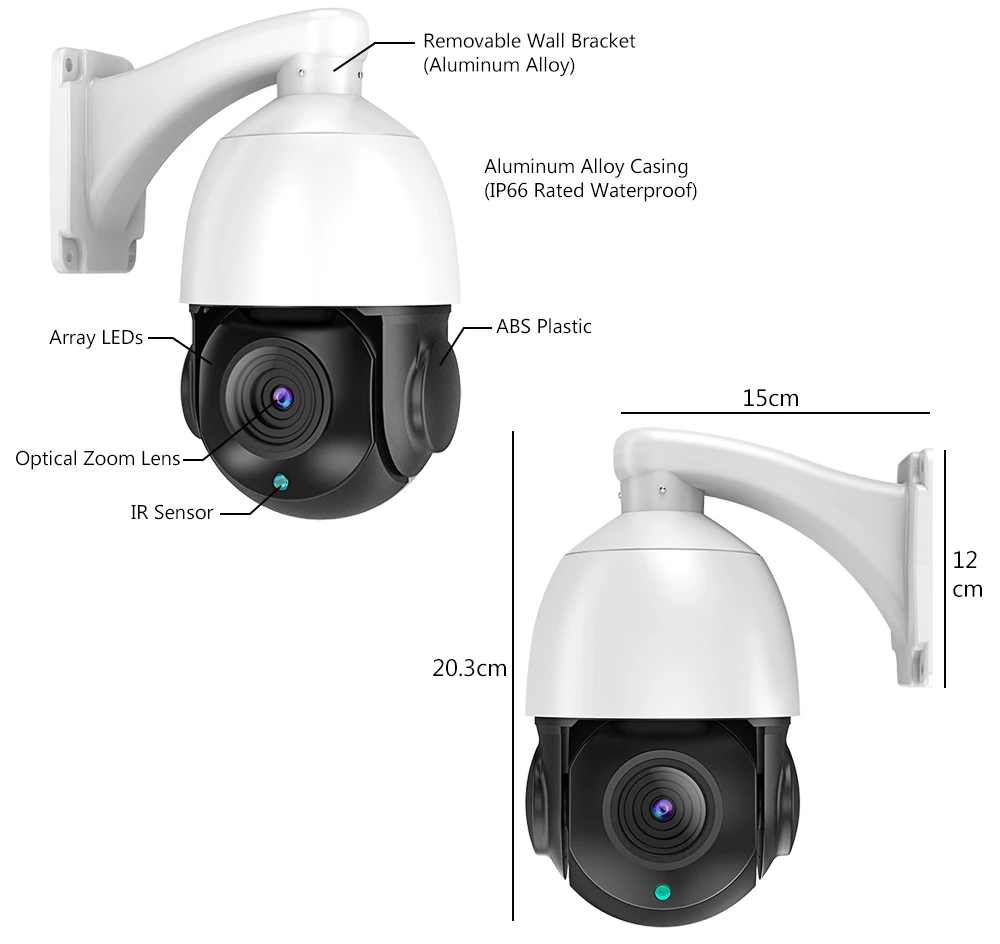

Easy Install
Item Detailed
Camera Model |
K-12 |
K-13 |
DSP |
NEXTCHIP2441 |
NVP2477 |
Sensor |
1/3" CMOS 2MP SONY IMX307 |
OV05A10 |
Output pixel |
1920x1080 |
5MP |
Lens |
20X f=4.7~94mm |
|
BLC |
Support |
|
AGC |
Auto/Manual |
|
WB |
Indoor/Outdoor/Auto/Manual |
|
S/N Ratio |
>=50dB |
|
WDR |
DWDR |
|
Rotation Range |
Pan: 0 degreeto 360 degree , Tilt: 0 degree to 90 degree |
|
Rotation Speed |
Pan: 0~45 degree/s , Tilt:0~30 degree/s |
|
Auto Flip |
Horizontal 180degree, Vertical 90degree |
|
Preset Points |
220pcs preset( Dwell time 01-60s interval available) |
|
A-B Scan |
User programmable (scan speed 1-64 levels setting available ) |
|
Guard Tours |
3 groups (Max.16 points, dwell time user selectable) |
|
PWR On Action |
Memory/Pattern 1/Tour 1/360degree scan/A-B scan/Park 1/None |
|
Video interface output |
AHD/TVI/CVI/CVBS selectable |
|
Communication mode |
RS485 (+/-) / coaxial cable |
|
Operating Temperature |
-40 centigrade~+60 centigrade |
|
Power |
DC12V 3A (Not include) |
|
Power Consumption |
<= 25W |
|
Lightning Protection |
Transient voltage 6000V |
|
Auto Control IR LED |
PWM |
|
IR distance |
Up to 100 meters |
|
LEDs |
6PCS Array IR LED |
|
Support ambient light detection |
IR illumination on 1-9 grades selectable |
|
