USAFEQLO X1 Xmeye Pro NVR 5MP Video Recorder Camera module
1. Built-in advanced microphone & speaker and with anti noise technology for a clear voice communicating between the APP and camera
2.it can support Supports 2.4G HZ Wifi (Don't support 5G HZ WiFi).
3.it Support Email and APP push notification methods.
it is made in USAFEQLO Security Technology Co.,Ltd
HD 4K Max Output
H.265AI/H.265 CCTV NVRMotion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
H.265 More Clear , Hd Resolution Offer You Best Image Quality In a Lower Bit Rate.
Save More Storage Space,Can Reduce 50% File Size
Hi3536 Max Support the 4K Display
Advanced H.265++ Video Compression

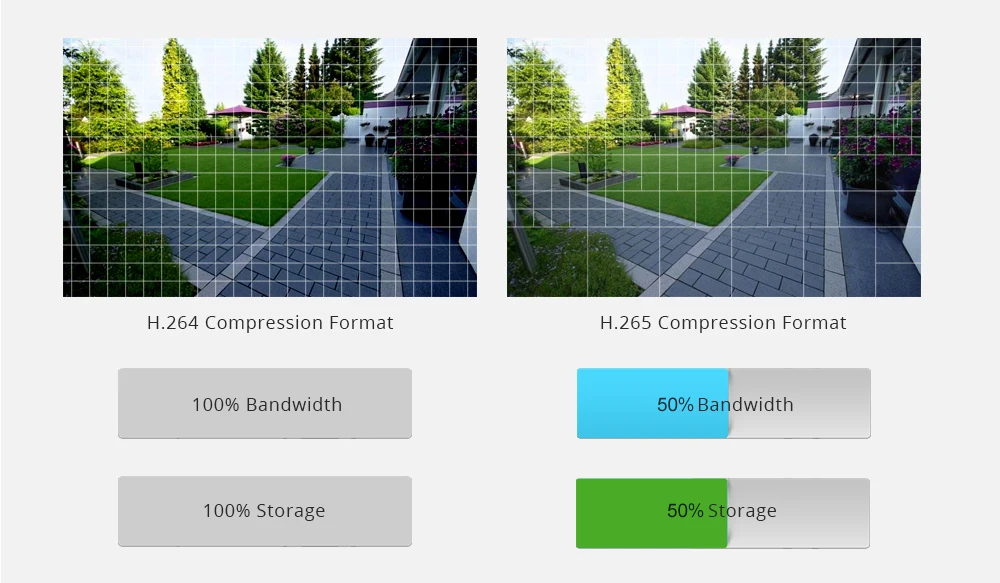

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Support 64CH 5MP/ 24CH 5MP/ 36CH 4MP/16CH 4K
Easy remote access Anytime anywhere

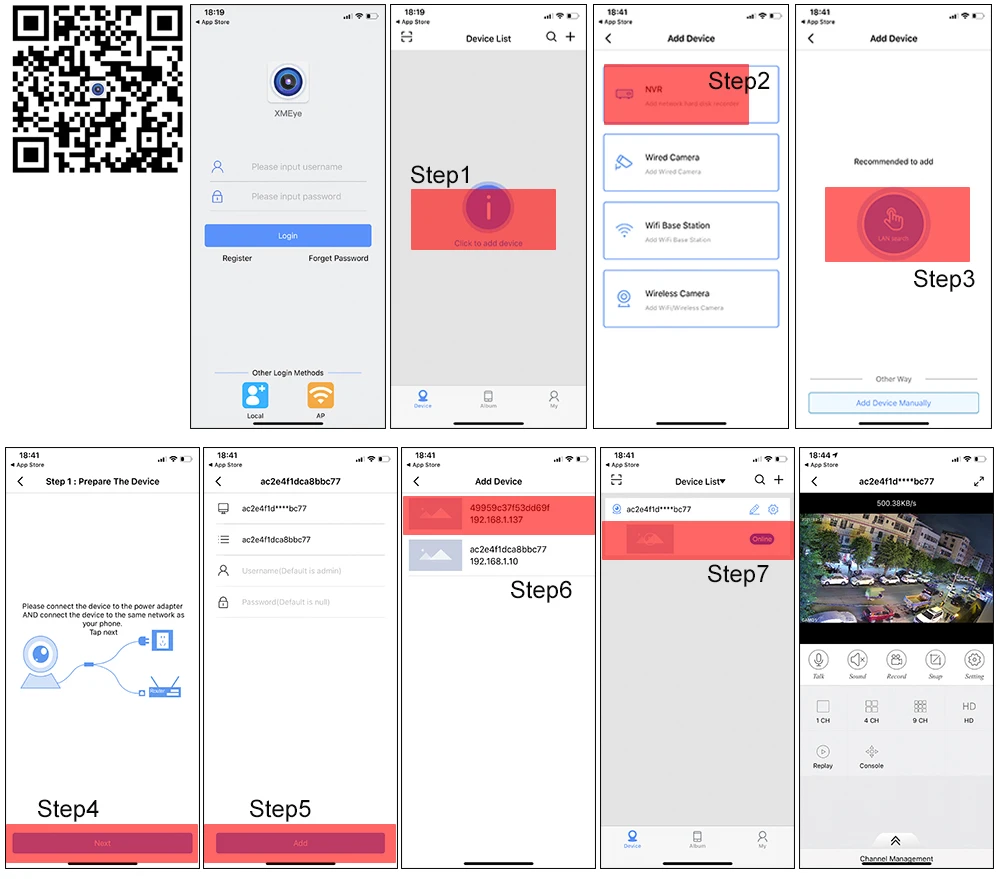

P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the NVR

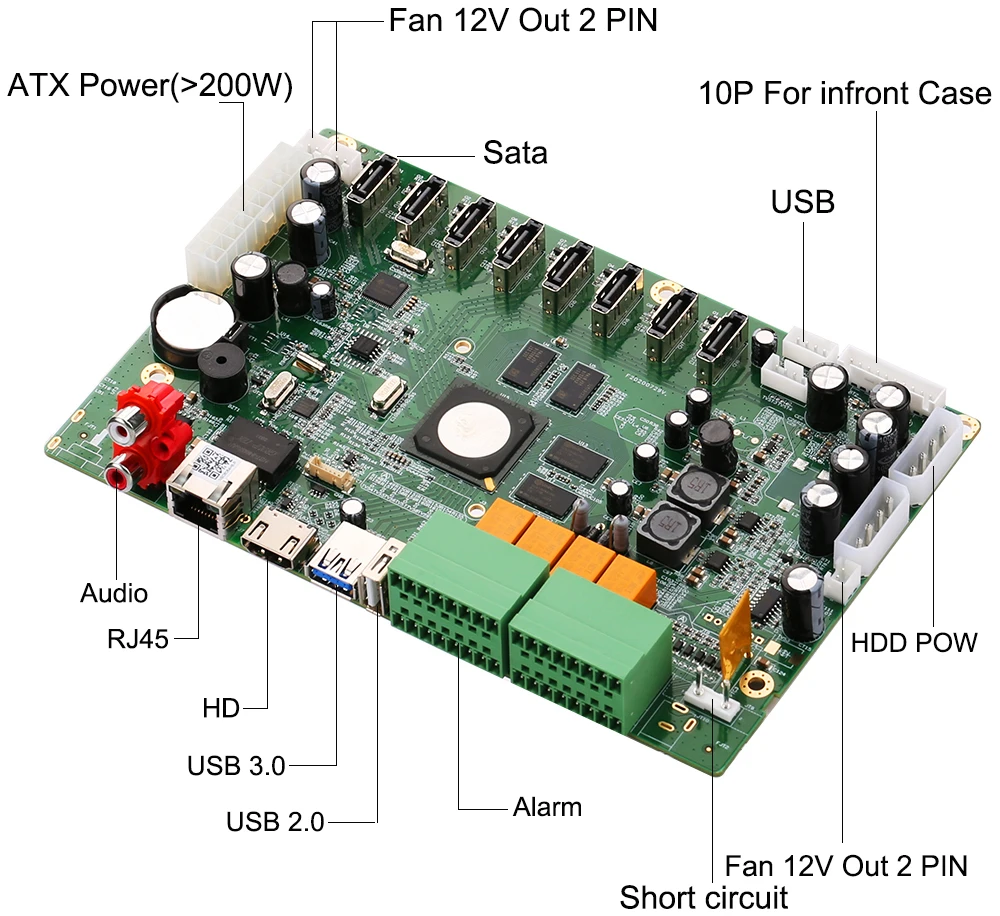

Interface Definition
Model |
NBD8064H8-P |
|
System |
Main processor |
Hi3536 |
Operating System |
Embedded Linux |
|
System Resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
Operator Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
Preview |
1/4/8/16/24/32/64 |
|
Video |
Video input (IP) |
16*4k/64*5M/24*5M/36*4M |
Video standards |
PAL(625TVL,50f/s);NTSC(525TVL,60f/s) |
|
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
|
Display quality |
Max:4K |
|
Playback quality |
5M/4M/1080P |
|
Decode |
4*5M/9*4M/8*1080P |
|
Motion detection |
Depend on camera |
|
Audio |
Audio compression |
G.711A |
intercom |
Support |
|
Record & playback |
Recording mode |
Manual>Alarm>Video Detection>Continuous |
Local Playback |
4*5M/9*4M/8*1080P |
|
Search mode |
search by Time/calendar/event/channel |
|
Storage & |
Record Storage |
HDD ,network |
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
Interface |
Video output |
1ch HDMI ,1ch VGA output |
Audio I/O |
1/1 |
|
Alarm I/O |
16/4 |
|
Network interface |
1*RJ4510M/100M/1000MAdaptiveEthernetport |
|
USB interface |
1*USB2.0 port,1*USB3.0 port(Reserved 2 pre interface) |
|
Hard disk |
8*SATA(Up to 8TB for each disk) |
|
other |
PTZ control |
Control PTZ device by network,1*RS485,1*RS232 |
ONVIF |
Support |
|
Power supply |
ATX>200W |
|
Power Consumption |
<10W(Without HDD) |
|
Work environment |
Temperature:0degrees centigrade.-��55degrees centigrade. , Humidity:10%��90%RH , Atm:86kpa��106kp |
|
dimension |
192.5mm(H)*127mm(W) |
|
weight |
Around 220g |
J1 |
ATXPower(>200W) |
1:+3.3V |
2:+3.3V |
3:GND. |
4:GND |
5:GND |
6:+5V |
7:GND |
8:NC |
||
9:+5_STB |
10:+12V |
11:+3.3 |
12:+12V |
||
13:GND |
14:PWR_S |
15:GND |
16:GND |
||
17:GND |
18:NC |
19:+5V |
20:+5V |
||
JT3 |
FAN |
1:+12 |
2:GND |
||
JT4 |
FAN |
1:+12 |
2:GND |
||
CN1 |
SATA |
||||
CN2 |
SATA |
||||
CN3 |
SATA |
||||
CN4 |
SATA |
||||
CN5 |
SATA |
||||
CN6 |
SATA |
||||
CN7 |
SATA |
||||
CN8 |
SATA |
||||
JT5 |
USB |
||||
JT2 |
USB |
||||
JT1 |
10PIN |
1:+5 |
2:GND |
3:+5_STB |
4:GND |
5:NC |
6:NC |
7:RXD_FRONT |
8:TXD_FRONT |
||
9:PWR_S |
10:GND |
||||
JT6 |
Power HDD |
||||
J2 |
Power HDD |
||||
JT7 |
FAN |
1:+12 |
2:GND |
||
JT8 |
RS232 |
||||
JT13 |
RS232 |
||||
JT9 |
NO USE |
||||
JT10 |
NO USE |
||||
J5 |
ALARM |
1:ALARM_IN1 |
2:ALARM_IN9 |
3:ALARM_IN2 |
4:ALARM_IN10 |
5:ALARM_IN3 |
6:ALARM_IN11 |
7:ALARM_IN4 |
8:ALARM_IN12 |
||
9:GND |
10:GND |
11:ALARM_IN5 |
12:ALARM_IN13 |
||
13:ALARM_IN6 |
14:ALARM_IN14 |
15:ALARM_IN7 |
16:ALARM_IN15 |
||
J4 |
ALARM |
1:ALARM_IN8 |
2:ALARM_IN16 |
3:GND |
4:GND |
5:ALARMOUT1_C |
6:ALARMOUT3_C |
7:ALARMOUT1_NO |
8:ALARMOUT3_NO |
||
9:ALARMOUT2_C |
10:ALARMOUT4_C |
11:ALARMOUT2_NO |
12:ALARMOUT4_NO |
||
13:RS232_R |
14:RS485_A |
15:RS232_T |
16:RS485_B |
||
JT11 |
USB2.0 |
||||
J6 |
USB3.0 |
||||
CN9 |
VGA OUT |
||||
J8 |
HD OUT |
||||
J7 |
RJ45 |
||||
CN10 |
Audio |
1:AUDIO_OUT_MAIN |
2:AUDIO_LINE_IN |
||
J9 |
NO USE |
||||
